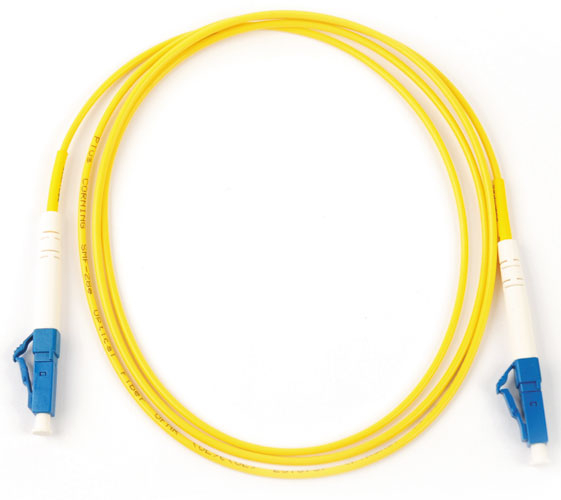

LC/PC-LC/PC SM Simplex 3.0mm patch cord

Quick Details:
Type: UPC/APC fiber patch cord
Mode: Single mode
Fiber: G652D, G657A1,G657A2, G657A3
Ferrule End-face: PC, UPC, APC
Cable core: Duplex/Simplex
Cable diameter: 0.9mm, 2.0mm, 3.0mm
Quantity:
Inquire Add to Basket

sharethis sharing button



Features:

  1. Serialized & Individual Test Records
  2. Meets RoHS and Bell core GR 326-core standards
  3. Custom Configurations Available at No Extra Charge
  4. 3D fiber interferometer is available
  5. Pluggable structure, easy to intensive-installation
  6. Low insertion loss and high return loss



Applications:

  1. Optical access network
  2. Data processing networks
  3. Telecommunication networks
  4. Fiber optic communication networks
  5. CATV, LAN, WAN, Test &Measurement



Specification:

Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO, E2000
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C



Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)
